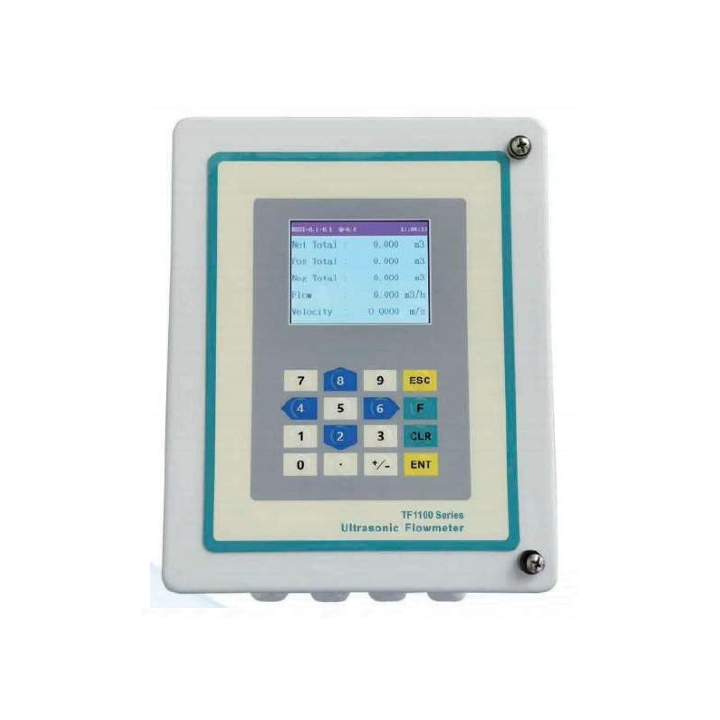

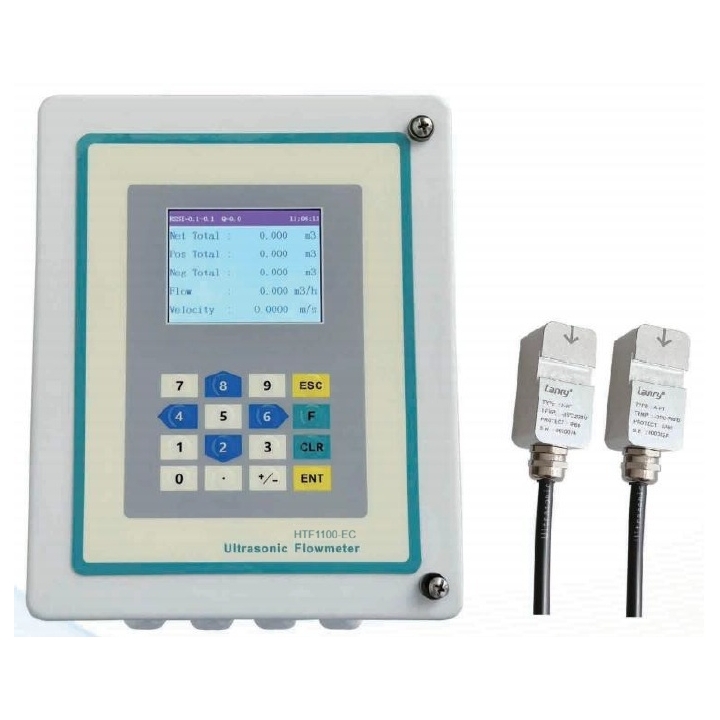

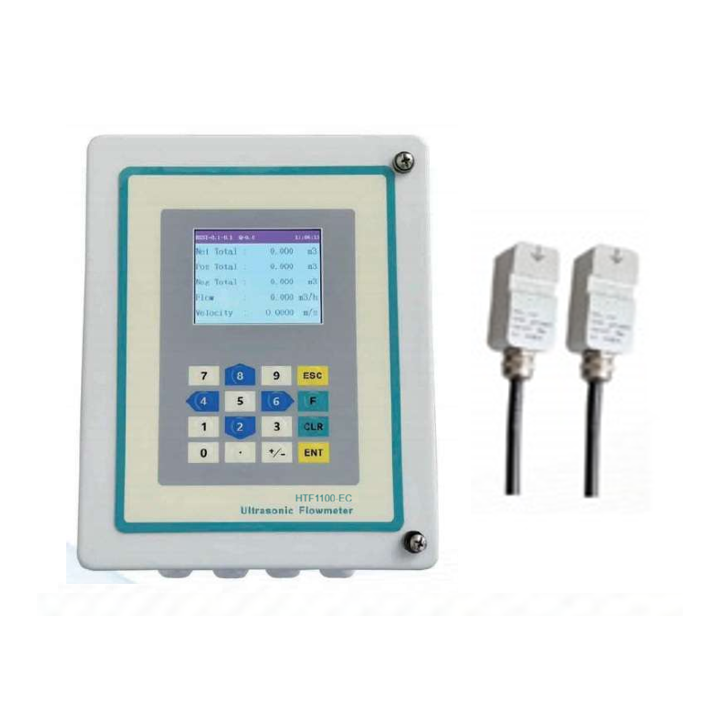

TF1100-EC

• Ultrasonic transit-time, clamp on transducer pair c/w PT1000 clamp-on temperature sensor pair
• DN20... 5000
• 4... 20mA analogue output
• Modbus RTU (RS485)
• -30...200°C liquid temperature range
• 10m sensor cabling as standard
• IP65 wall mount transmitter housing
• 85...265Vac or 24Vdc option

SC5I (Supercal 5 Integrator)

• Heating & Cooling
• For connection of 3rd party flow meters
• Programmable flow meter pulse value
• Programmable units & resolution
• Modular output options
• BACnet MSTP module in standard version
• Modbus RTU optional
• NFC configuration via Superprog Android app
• 110...230Vac standard version
• 24Vac/dc & Battery power options
• Accuracy better than required by EN1434
• Certified for revenue metering

SC5S (Supercal 5 + Superstatic 440)

• Heating & Cooling
• 1.5...400m³/h nominal flow rates
• Modular output options
• BACnet MSTP module in standard version
• Modbus RTU optional
• NFC configuration via Superprog Android app
• 110...230Vac standard version
• 24Vac/dc & battery power options
• Accuracy better than required by EN1434
• Certified for revenue metering

HEME

• DN15 - DN900 (larger sizes on request)
• 4...20mA ouput
• Modbus RTU
• PTFE lining (-40...130ºC)
• IP65
• 230Vac power supply

HPAC301

• DN25 - DN250 (larger sizes on request)
• 4...20mA ouput
• Modbus RTU
• BACnet MSTP*
• Bluetooth for easy configuration
• PU lining (<85ºC)
• IP67
• 230Vac power supply

* 9600 baud only
